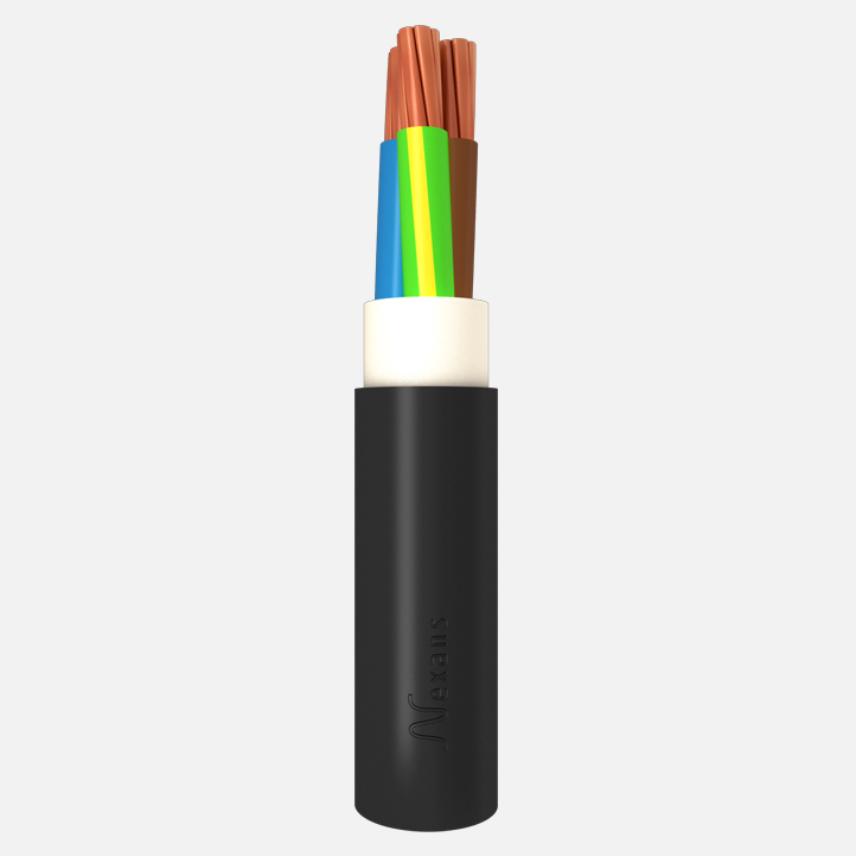

U-1000 R2V (industrial unarmoured)

U-1000 R2V (industrial unarmoured)

U-1000 R2V (industrial unarmoured)

Read more
Download all documents
Contact us

Products

Actions
Filters

  • products

U1000 R2V 1X120

Nexans ref. 56416169000

  • Packaging: Drum (m)
  • Conductor cross-section: 120 mm²
  • Number of cores: 1
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 1X150

Nexans ref. 56416171300

  • Packaging: Drum (m)
  • Conductor cross-section: 150 mm²
  • Number of cores: 1
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 1X185

Nexans ref. 56416172600

  • Packaging: Drum (m)
  • Conductor cross-section: 185 mm²
  • Number of cores: 1
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 1X240

Nexans ref. 56416175600

  • Packaging: Drum (m)
  • Conductor cross-section: 240 mm²
  • Number of cores: 1
  • Max. conductor temperature in service: 85 °C
  • Length: 500 m



U1000 R2V 1X25

Nexans ref. 56416156600

  • Packaging: Drum (m)
  • Conductor cross-section: 25 mm²
  • Number of cores: 1
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 1X300

Nexans ref. 56416177300

  • Packaging: Drum (m)
  • Conductor cross-section: 300 mm²
  • Number of cores: 1
  • Max. conductor temperature in service: 85 °C
  • Length: 500 m



U1000 R2V 1X35

Nexans ref. 56416159000

  • Packaging: Drum (m)
  • Conductor cross-section: 35 mm²
  • Number of cores: 1
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 1X400

Nexans ref. 56416179000

  • Packaging: Drum (m)
  • Conductor cross-section: 400 mm²
  • Number of cores: 1
  • Max. conductor temperature in service: 85 °C
  • Length: 500 m



U1000 R2V 1X50

Nexans ref. 56416161200

  • Packaging: Drum (m)
  • Conductor cross-section: 50 mm²
  • Number of cores: 1
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 1X70

Nexans ref. 56416164800

  • Packaging: Drum (m)
  • Conductor cross-section: 70 mm²
  • Number of cores: 1
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 1X95

Nexans ref. 56416167500

  • Packaging: Drum (m)
  • Conductor cross-section: 95 mm²
  • Number of cores: 1
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 1x500

Nexans ref. 56416179800

  • Packaging: Drum (m)
  • Conductor cross-section: 500 mm²
  • Number of cores: 1
  • Max. conductor temperature in service: 85 °C
  • Length: 500 m



U1000 R2V 2x1,5 XP

Nexans ref. 56322211100

  • Packaging: Drum (m)
  • Conductor cross-section: 1.5 mm²
  • Number of cores: 2
  • Max. conductor temperature in service: 85 °C
  • Length: 100 m



U1000 R2V 2x1.5 XP CR

Nexans ref. 56321211500

  • Packaging: Coil (m)
  • Conductor cross-section: 1.5 mm²
  • Number of cores: 2
  • Max. conductor temperature in service: 85 °C
  • Length: 100 m



U1000 R2V 2x10 XP

Nexans ref. 56322250000

  • Packaging: Drum (m)
  • Conductor cross-section: 10 mm²
  • Number of cores: 2
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 2x16

Nexans ref. 56416252300

  • Packaging: Drum (m)
  • Conductor cross-section: 16 mm²
  • Number of cores: 2
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 2x16 XP

Nexans ref. 56421252300

  • Packaging: Drum (m)
  • Conductor cross-section: 16 mm²
  • Number of cores: 2
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 2x2,5 XP

Nexans ref. 56322213200

  • Packaging: Drum (m)
  • Conductor cross-section: 2.5 mm²
  • Number of cores: 2
  • Max. conductor temperature in service: 90 °C
  • Length: 2000 m



U1000 R2V 2x2.5 XP CR

Nexans ref. 56321213600

  • Packaging: Coil (m)
  • Conductor cross-section: 2.5 mm²
  • Number of cores: 2
  • Max. conductor temperature in service: 85 °C
  • Length: 2000 m



U1000 R2V 2x4 XP

Nexans ref. 56322215300

  • Packaging: Drum (m)
  • Conductor cross-section: 4 mm²
  • Number of cores: 2
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 2x6 XP

Nexans ref. 56322247100

  • Packaging: Drum (m)
  • Conductor cross-section: 6 mm²
  • Number of cores: 2
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 3G1,5 XP MOB

Nexans ref. 56321831500

  • Packaging: Drum (m)
  • Conductor cross-section: 4 mm²
  • Number of cores: 2
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 3G2,5 XP MOB

Nexans ref. 56321832500

  • Packaging: Drum (m)
  • Conductor cross-section: 6 mm²
  • Number of cores: 2
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 3G4 XP

Nexans ref. 56322315821

  • Packaging: Drum (m)
  • Conductor cross-section: 4 mm²
  • Number of cores: 3
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 3G6

Nexans ref. 56315347021

  • Packaging: Drum (m)
  • Conductor cross-section: 6 mm²
  • Number of cores: 3
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 3X120

Nexans ref. 56416369400

  • Packaging: Drum (m)
  • Conductor cross-section: 120 mm²
  • Number of cores: 3
  • Max. conductor temperature in service: 85 °C
  • Length: 500 m



U1000 R2V 3X120+70

Nexans ref. 56416018600

  • Packaging: Drum (m)
  • Conductor cross-section: 120 mm²
  • Number of cores: 4
  • Max. conductor temperature in service: 85 °C
  • Length: 500 m



U1000 R2V 3X150+70

Nexans ref. 56416019300

  • Packaging: Drum (m)
  • Conductor cross-section: 150 mm²
  • Number of cores: 4
  • Max. conductor temperature in service: 85 °C
  • Length: 500 m



U1000 R2V 3X185+70

Nexans ref. 56416020200

  • Packaging: Drum (m)
  • Conductor cross-section: 185 mm²
  • Number of cores: 4
  • Max. conductor temperature in service: 85 °C
  • Length: 500 m



U1000 R2V 3X240+95

Nexans ref. 56416022700

  • Packaging: Drum (m)
  • Conductor cross-section: 240 mm²
  • Number of cores: 4
  • Max. conductor temperature in service: 85 °C
  • Length: 500 m



U1000 R2V 3X25

Nexans ref. 56416356800

  • Packaging: Drum (m)
  • Conductor cross-section: 25 mm²
  • Number of cores: 3
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 3X50

Nexans ref. 56416361600

  • Packaging: Drum (m)
  • Conductor cross-section: 50 mm²
  • Number of cores: 3
  • Max. conductor temperature in service: 85 °C
  • Length: 500 m



U1000 R2V 3X50+35

Nexans ref. 56416015000

  • Packaging: Drum (m)
  • Conductor cross-section: 50 mm²
  • Number of cores: 4
  • Max. conductor temperature in service: 85 °C
  • Length: 500 m



U1000 R2V 3X70

Nexans ref. 56416364300

  • Packaging: Drum (m)
  • Conductor cross-section: 70 mm²
  • Number of cores: 3
  • Max. conductor temperature in service: 85 °C
  • Length: 500 m



U1000 R2V 3X70+50

Nexans ref. 56416016300

  • Packaging: Drum (m)
  • Conductor cross-section: 70 mm²
  • Number of cores: 4
  • Max. conductor temperature in service: 85 °C
  • Length: 500 m



U1000 R2V 3X95

Nexans ref. 56416367000

  • Packaging: Drum (m)
  • Conductor cross-section: 95 mm²
  • Number of cores: 3
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 3X95+50

Nexans ref. 56416017000

  • Packaging: Drum (m)
  • Conductor cross-section: 95 mm²
  • Number of cores: 4
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 3x1.5 XP CR

Nexans ref. 56321311821

  • Packaging: Coil (m)
  • Conductor cross-section: 1.5 mm²
  • Number of cores: 3
  • Max. conductor temperature in service: 85 °C
  • Length: 2000 m



U1000 R2V 3x10 XP

Nexans ref. 56322350021

  • Packaging: Drum (m)
  • Conductor cross-section: 10 mm²
  • Number of cores: 3
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 3x10 XP

Nexans ref. 56322350000

  • Packaging: Drum (m)
  • Conductor cross-section: 10 mm²
  • Number of cores: 3
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 3x16

Nexans ref. 56416352400

  • Packaging: Drum (m)
  • Conductor cross-section: 16 mm²
  • Number of cores: 3
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 3x2.5 XP CR

Nexans ref. 56321313221

  • Packaging: Coil (m)
  • Conductor cross-section: 2.5 mm²
  • Number of cores: 3
  • Max. conductor temperature in service: 85 °C
  • Length: 2000 m



U1000 R2V 3x6 XP

Nexans ref. 56322347021

  • Packaging: Drum (m)
  • Conductor cross-section: 6 mm²
  • Number of cores: 3
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 3x6 XP

Nexans ref. 56322347000

  • Packaging: Drum (m)
  • Conductor cross-section: 6 mm²
  • Number of cores: 3
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 4G1,5 XP

Nexans ref. 56322411221

  • Packaging: Drum (m)
  • Conductor cross-section: 1.5 mm²
  • Number of cores: 4
  • Max. conductor temperature in service: 90 °C
  • Length: 2000 m



U1000 R2V 4G2,5 XP

Nexans ref. 56322413321

  • Packaging: Drum (m)
  • Conductor cross-section: 10 mm²
  • Number of cores: 2
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 4G4 XP

Nexans ref. 56322415421

  • Packaging: Drum (m)
  • Conductor cross-section: 4 mm²
  • Number of cores: 4
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 4X10

Nexans ref. 56315450021

  • Packaging: Drum (m)
  • Conductor cross-section: 10 mm²
  • Number of cores: 4
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 4X120

Nexans ref. 56416469600

  • Packaging: Drum (m)
  • Conductor cross-section: 120 mm²
  • Number of cores: 4
  • Max. conductor temperature in service: 85 °C
  • Length: 500 m



U1000 R2V 4X150

Nexans ref. 56416471300

  • Packaging: Drum (m)
  • Conductor cross-section: 150 mm²
  • Number of cores: 4
  • Max. conductor temperature in service: 85 °C
  • Length: 500 m



U1000 R2V 4X25

Nexans ref. 56416456021

  • Packaging: Drum (m)
  • Conductor cross-section: 25 mm²
  • Number of cores: 4
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 4X35

Nexans ref. 56416459300

  • Packaging: Drum (m)
  • Conductor cross-section: 35 mm²
  • Number of cores: 4
  • Max. conductor temperature in service: 85 °C
  • Length: 500 m



U1000 R2V 4X50

Nexans ref. 56416461800

  • Packaging: Drum (m)
  • Conductor cross-section: 50 mm²
  • Number of cores: 4
  • Max. conductor temperature in service: 85 °C
  • Length: 500 m



U1000 R2V 4X6

Nexans ref. 56315447821

  • Packaging: Drum (m)
  • Conductor cross-section: 6 mm²
  • Number of cores: 4
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 4X70

Nexans ref. 56416464500

  • Packaging: Drum (m)
  • Conductor cross-section: 70 mm²
  • Number of cores: 4
  • Max. conductor temperature in service: 85 °C
  • Length: 500 m



U1000 R2V 4X95

Nexans ref. 56416467200

  • Packaging: Drum (m)
  • Conductor cross-section: 95 mm²
  • Number of cores: 4
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 4x1,5

Nexans ref. 56315411200

  • Packaging: Drum (m)
  • Conductor cross-section: 1.5 mm²
  • Number of cores: 4
  • Max. conductor temperature in service: 90 °C
  • Length: 2000 m



U1000 R2V 4x10 XP

Nexans ref. 56322450021

  • Packaging: Drum (m)
  • Conductor cross-section: 10 mm²
  • Number of cores: 4
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 4x10 XP

Nexans ref. 56322450000

  • Packaging: Drum (m)
  • Conductor cross-section: 10 mm²
  • Number of cores: 4
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 4x16

Nexans ref. 56416452500

  • Packaging: Drum (m)
  • Conductor cross-section: 16 mm²
  • Number of cores: 4
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 4x16 XP

Nexans ref. 56421452500

  • Packaging: Drum (m)
  • Conductor cross-section: 16 mm²
  • Number of cores: 4
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 4x240

Nexans ref. 56416475100

  • Packaging: Drum (m)
  • Conductor cross-section: 240 mm²
  • Number of cores: 4
  • Max. conductor temperature in service: 85 °C
  • Length: 400 m



U1000 R2V 4x6 XP

Nexans ref. 56322447821

  • Packaging: Drum (m)
  • Conductor cross-section: 6 mm²
  • Number of cores: 4
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 4x6 XP

Nexans ref. 56322447800

  • Packaging: Drum (m)
  • Conductor cross-section: 6 mm²
  • Number of cores: 4
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 5G1,5 XP

Nexans ref. 56322511721

  • Packaging: Drum (m)
  • Conductor cross-section: 4 mm²
  • Number of cores: 3
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 5G10 XP

Nexans ref. 56322550021

  • Packaging: Drum (m)
  • Conductor cross-section: 10 mm²
  • Number of cores: 5
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 5G16 XP

Nexans ref. 56421552621

  • Packaging: Drum (m)
  • Conductor cross-section: 16 mm²
  • Number of cores: 5
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 5G2,5 XP

Nexans ref. 56322513821

  • Packaging: Drum (m)
  • Conductor cross-section: 6 mm²
  • Number of cores: 3
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 5G35

Nexans ref. 56416556421

  • Packaging: Drum (m)
  • Conductor cross-section: 35 mm²
  • Number of cores: 5
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 5G4 XP

Nexans ref. 56322515021

  • Packaging: Drum (m)
  • Conductor cross-section: 4 mm²
  • Number of cores: 5
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 5G50

Nexans ref. 56416556621

  • Packaging: Drum (m)
  • Conductor cross-section: 50 mm²
  • Number of cores: 5
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 5G6 XP

Nexans ref. 56322547721

  • Packaging: Drum (m)
  • Conductor cross-section: 6 mm²
  • Number of cores: 5
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



U1000 R2V 5X25

Nexans ref. 56416556100

  • Packaging: Drum (m)
  • Conductor cross-section: 25 mm²
  • Number of cores: 5
  • Max. conductor temperature in service: 85 °C
  • Length: 500 m



U1000 R2V 5x16 XP

Nexans ref. 56421552600

  • Packaging: Drum (m)
  • Conductor cross-section: 16 mm²
  • Number of cores: 5
  • Max. conductor temperature in service: 85 °C
  • Length: 1000 m



Description

Description

Standards

  • Product
    IEC 60502; XP C 32-321

Application

U-1000 R2V cables can be used in all low voltage power installations. Multiconductors cables are adapted to remote control and telecontrol installations.

In case of high ambiant temperature, use correction coefficient.

Installation

These cables can be fixed on cable trays, within conduits or fixed to walls. They also can be buried directly with extra mechanical protection.

Cross sections 1,5 - 2,5 and 4 mm² have to be of class 2 flexiblility, if the cable is connected to equipment subject to vibration.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Bare copper
Insulation
XLPE (chemical)
Outer sheath
PVC
Sheath colour
Black
Conductor shape
Circular

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
0,6/1 kV

Mechanical characteristics

Mechanical characteristics

Mechanical resistance to impacts
Good
Cable flexibility
Rigid

Usage characteristics

Usage characteristics

Short-circuit max. conductor temperature
250 °C
Operating temperature, range
-10 ... 60 °C
Flame retardant
C2, NF C 32-070
Weather resistance
Very good
Chemical resistance
Accidental
Bending factor when laying
6 (xD)

Resources

Resources

Documentation

Certificat AFAQ unité d'Autun (pdf) pdf — 693.7 kB
Download
Certificat AFAQ unités de Bohain et Jeumont (pdf) pdf — 289.7 kB
Download
Certificat d'homologation R2V (pdf) pdf — 39.1 kB
Download
Certificat d'homologation R2V >= 25 mm², 2 à 5 cond. (pdf) pdf — 203.6 kB
Download
Close

Our websites

Select your country to find our products and solutions

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
